Ball valves are widely used in industries such as oil and gas, chemical processing, and water treatment due to their durability and reliable shutoff performance. However, even high-quality valves can face issues over time, and one of the most common problems is ball valve leaks at the stem. If not handled properly, these leaks can cause inefficiency, safety risks, and costly downtime. In this guide, we’ll explore the causes, prevention strategies, and repair methods for preventing and resolving ball valve stem leaks, while also introducing advanced solutions from GOTEB Ball Valve Stem.
The ball valve stem is the critical link between the actuator or handle and the ball inside the valve. Its function is to transfer rotational motion to the ball, opening or closing fluid flow. Since the stem penetrates the valve body, it must be sealed effectively to avoid leakage.
Key stem-related components include:
Ball Valve Stem Packing : Compressible material around the stem that ensures sealing.
Ball Valve Packing Nut : Adjusts the packing pressure and minimizes leakage.
Ball Valve Without Packing Nut : Some designs rely only on O-rings or seals, which may wear faster.
Stem Extensions : Options such as ball valve stem extension kits, ball valve extension stems, and ball valves with extended stems allow operation in buried or insulated systems.
Rising Stem Ball Valve : A specialized design used in critical applications.
When these parts fail, issues such as ball valve leaking internally, ball valve leaking when closed, or ball valve leaking from the stem can occur.
Over time, ball valve stem packing wears out due to friction, chemical attack, or temperature cycling, eventually leading to leakage.
A loose ball valve packing nut often causes small stem leaks. Conversely, over-tightening can damage the stem. Valves designed without a packing nut depend entirely on seals, which are more vulnerable to wear.
Exposure to corrosive media can cause stem deterioration, leading to ball valve stem failure and ball valve leaking internally.
Incorrect torque, misalignment, or unsuitable materials can create early sealing failures and leaks.
Frequent cycling, vibration, or extreme pressure can accelerate wear and compromise sealing efficiency.
Selecting the right stem materials and packing is the first defense against leaks:
PTFE Packing – Ideal for chemical resistance and moderate temperatures.
Graphite Packing – Handles high-temperature steam service.
Viton O-rings – Best for high-temperature and oil service.
For maximum reliability, premium solutions like GOTEB Ball Valve Stem use corrosion-resistant alloys and advanced sealing systems.
Align the stem and actuator properly during installation.
Apply the manufacturer’s recommended torque to avoid ball valve stem failure.
Use appropriate thread sealants when needed.
Inspect valve stems every 3–6 months (or more often in aggressive environments).
Look for early signs of ball valve leaking when closed or ball valve leaking from stem.
For minor leaks, carefully tighten the ball valve packing nut to compress the packing without causing excess wear.
For pipelines under insulation or underground, use a ball valve stem extension kit or ball valve stem extension for easier maintenance.
Install protective covers to shield valves from weather and corrosion.
In safety-critical applications, upgrade to anti-blowout designs such as rising stem ball valves.
Even with preventive measures, leaks may still occur. Here’s how to fix them:
5-1 Step 1: Tighten the Packing Nut
Depressurize the system.
Gently tighten the ball valve packing nut in small increments.
Observe the leak; avoid over-tightening to prevent stem damage.
If tightening fails:
Shut down and depressurize the system.
Remove the actuator or handle.
Unscrew the packing nut and extract the old ball valve stem packing.
Clean the stem and packing chamber thoroughly.
Install new packing and reassemble.
This is often sufficient to resolve ball valve leaks at stem.
Replace the stem if it shows signs of wear, scratches, or bending.
If the issue is ball valve leaking internally or ball valve leaking when closed, replacing the entire valve may be necessary.
For long-term reliability:
Switch to rising stem ball valves for improved sealing.
Use ball valves with extended stems in buried or insulated pipelines.
Choose engineered solutions like GOTEB Ball Valve Stem, which offer enhanced sealing and durability.
GOTEB is a leading manufacturer of high-quality valve components, with a strong specialization in ball valve spheres and stems. Our mission is to provide industry-grade solutions that balance durability, performance, and customer-specific needs.

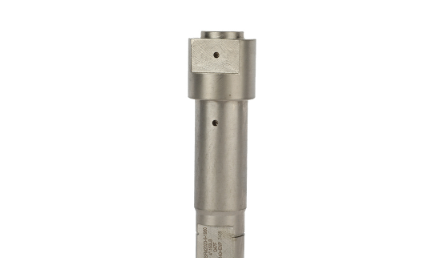

Why industries choose GOTEB Ball Valve Stem :
Superior Materials – Built from corrosion-resistant alloys and tested for extreme conditions.
Rigorous Quality Checks – Every stem undergoes strict testing for sealing performance and reliability.
Extended Stem Options – Including ball valve extension stems and ball valves with extended stems, ideal for oil and gas, chemical plants, and water treatment systems.
Customer-Centric Approach – GOTEB works with clients to design tailored solutions that meet unique project requirements.
With GOTEB Ball Valve Stem, you get more than components—you gain long-lasting reliability, reduced downtime, and enhanced safety.
A ball valve leaking from the stem may seem minor at first, but unresolved leaks can lead to operational inefficiency, safety risks, and expensive repairs. By understanding causes, applying preventive strategies, and following effective repair steps, you can significantly reduce the risk of ball valve stem failure. For long-term reliability, partner with GOTEB Ball Valve Stem company. With our expertise in ball valve spheres and precision-engineered stems, we deliver products crafted from the highest quality materials and tested to perform in the toughest environments. Contact GOTEB today to explore tailored solutions for your fluid control systems.
