Ball valves are essential components in a wide range of industrial and commercial piping systems, known for their durability, reliability, and effective shut-off capabilities. To better understand how ball valves work and perform under varying conditions, it is crucial to explore their core components and functionalities.
In this blog, we will explain what a ball valve is, delve into each of its main parts—including the ball valve body, ball valve seat, ball valve stem, and ball valve ball—and provide insights into their roles in valve performance. Whether you’re a procurement specialist, engineer, or distributor, this guide will give you a comprehensive understanding of ball valve components.
A ball valve is a type of quarter-turn valve that uses a hollow, perforated, and pivoting ball to control fluid flow. When the ball’s hole is aligned with the flow path, the valve is open; when rotated 90 degrees, the flow is blocked. Its compact structure and quick shut-off make it ideal for high-pressure applications and systems that require tight sealing.
Ball valves are widely used in industries such as oil and gas, chemical processing, water treatment, and food processing due to their simple operation, long service life, and minimal maintenance requirements.
Understanding the internal and external structure of a ball valve helps ensure proper selection, maintenance, and troubleshooting. Below are the key components:
2.1 Valve Body

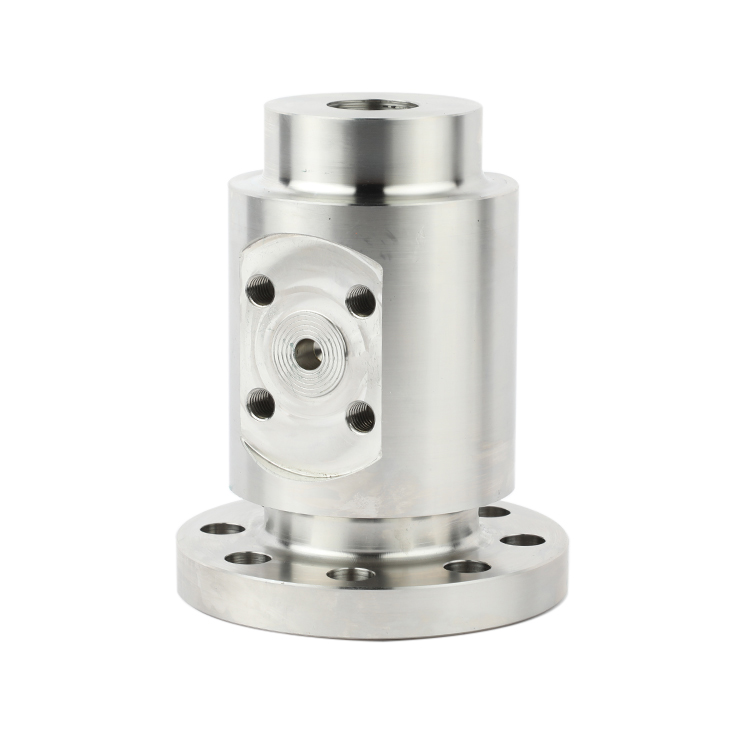

The ball valve body is the outer shell that houses all internal components. It is responsible for withstanding pressure and protecting the internal parts from external damage or environmental conditions. Materials typically used include stainless steel, brass, and PVC, depending on the application.
2.2 Handle
The handle is the external lever that allows manual control of the valve’s position. By rotating it 90 degrees, the ball inside turns to open or close the valve. Some designs feature lockable handles for added security.

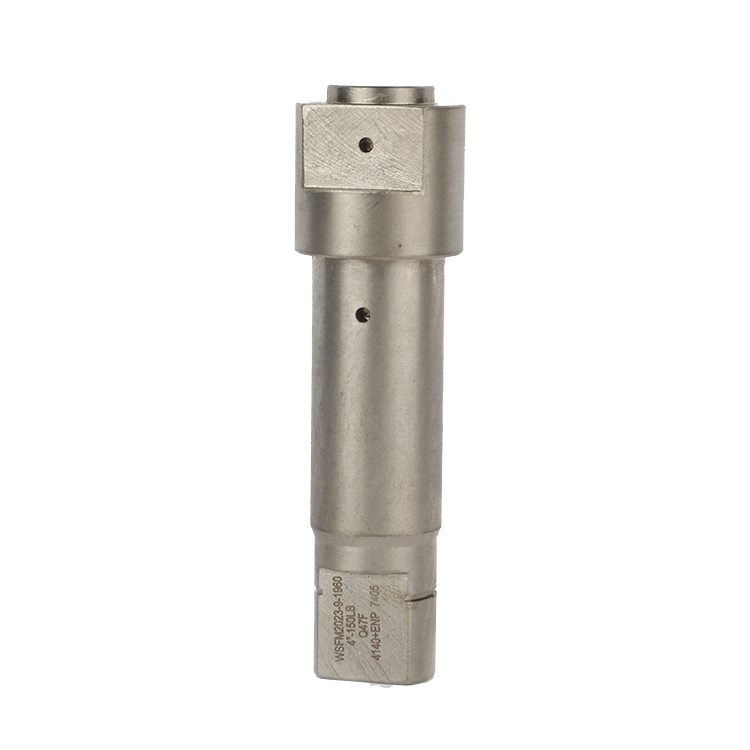

2.3 Stem
The ball valve stem connects the handle to the rotary ball. It transfers the torque applied to the handle directly to the ball. For safety and durability, the stem must be corrosion-resistant and securely sealed to prevent leakage.
2.4 Gland Nut
The gland nut secures the stem packing in place, ensuring tightness around the stem and preventing leakage at the point where the stem exits the valve body.
2.5 Outlet Port
The outlet port is the exit path for the flow media when the valve is open. Its design and diameter are critical in ensuring optimal flow rate and system compatibility.

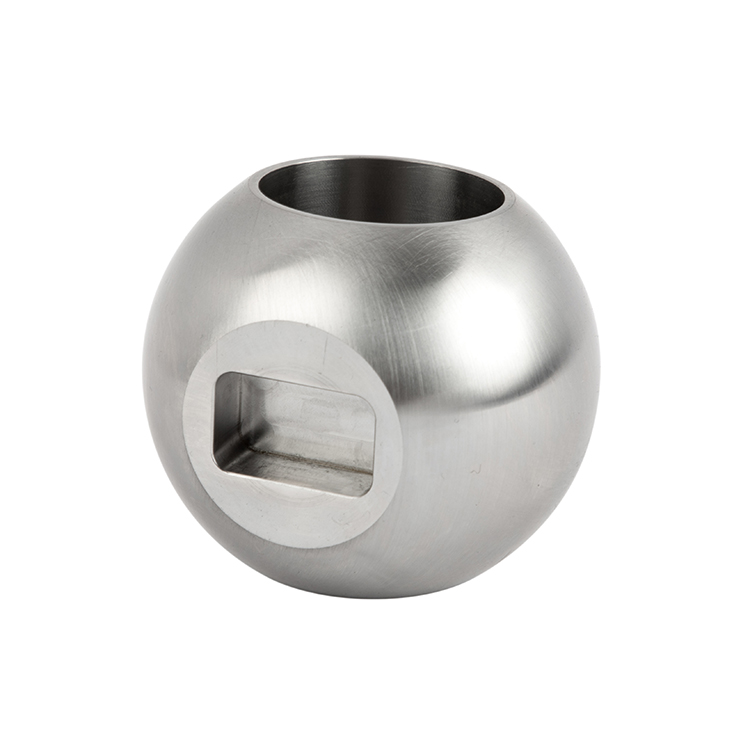

2.6 Rotary Ball

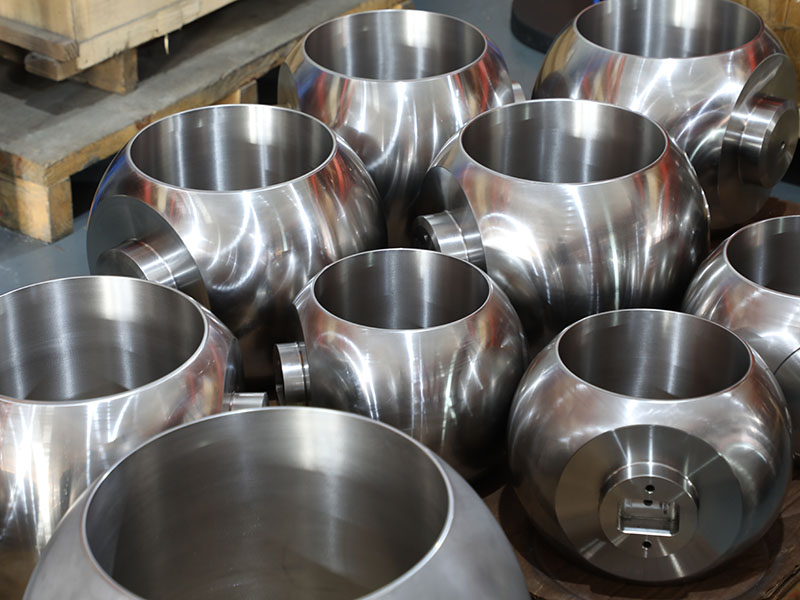

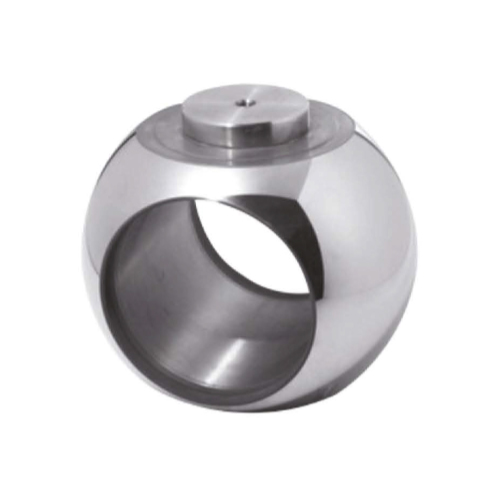

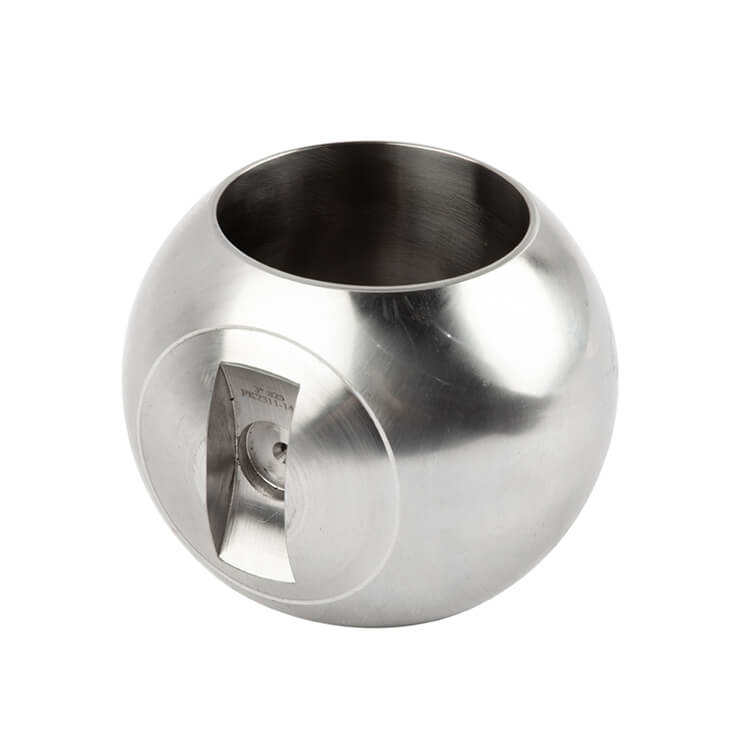

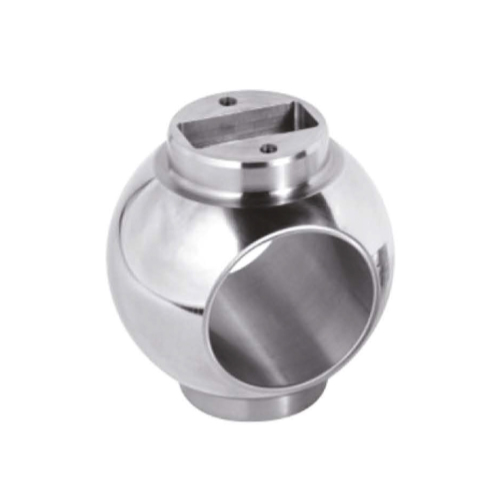

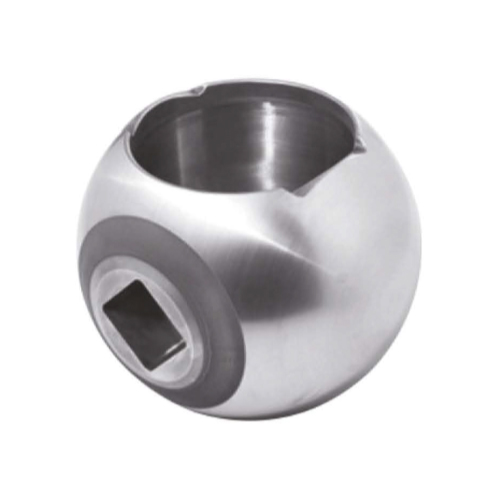

The ball valve ball is the core of the valve mechanism. It is usually made from metal or PTFE-coated materials and features a bore through which fluid flows when aligned with the pipeline. Precision in its manufacturing ensures minimal pressure drop and excellent sealing.
2.7 Thrust Washer
The thrust washer helps distribute the axial load and reduces friction between the stem and the valve body, contributing to smoother operation and longer component life.
2.8 Joint Gasket
Gaskets are used at the joints to prevent leakage between different valve components. They are typically made of PTFE, graphite, or elastomers depending on chemical compatibility and pressure conditions.
2.9 Seats
The ball valve seat provides the sealing surface for the rotary ball. It is crucial for leak-tight performance, typically made from materials like PTFE, TFM, or metal. The seat ensures a secure seal when the valve is closed.
2.10 Bonnet

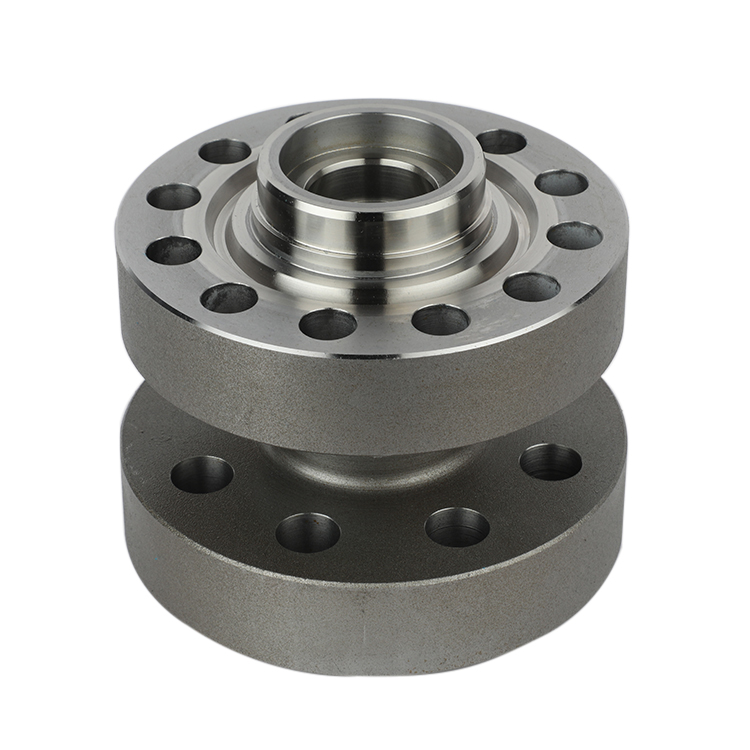

The bonnet is the top cover of the valve body, housing the stem and providing structural support. In some designs, it also allows access for stem maintenance or replacement.
2.11 Actuator
For automated systems, the handle is replaced with an actuator—pneumatic, electric, or hydraulic—that controls valve operation remotely. Actuators enhance precision and safety in high-demand applications.
2.12 Locking Device
A locking mechanism prevents unintentional operation of the valve, especially in hazardous or high-pressure environments. This is crucial for ensuring system safety during maintenance.
2.13 Stem Extension
In installations where the valve is hard to access (e.g., underground or in insulated systems), stem extensions allow remote operation of the handle or actuator.
2.14 Stem Protector
Stem protectors shield the stem from contaminants such as dust, chemicals, or moisture, thereby prolonging the life of the valve and maintaining smooth operation.
2.15 Cavity Filler
Cavity fillers are used in hygienic or corrosive environments to eliminate dead spaces around the ball, preventing fluid accumulation and contamination. This is essential in industries like food processing or pharmaceuticals.
2.16 Drain Valve
A drain valve can be integrated to release trapped fluid or pressure before maintenance. This ensures safety and prevents fluid-related accidents.
Each ball valve component plays a vital role in ensuring smooth, leak-free operation under various conditions. From the ball valve body and stem to the seat and rotary ball, understanding these parts helps engineers and buyers make informed decisions during valve selection or maintenance.
If you’re looking for reliable and high-quality ball valve components, GotebBall is a trusted manufacturer specializing in precision-engineered ball valve parts. With a focus on durability, performance, and customization, GotebBall serves industrial clients worldwide with solutions tailored to your needs.
